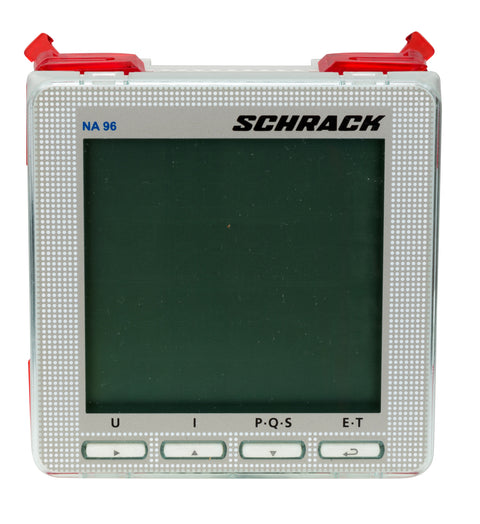

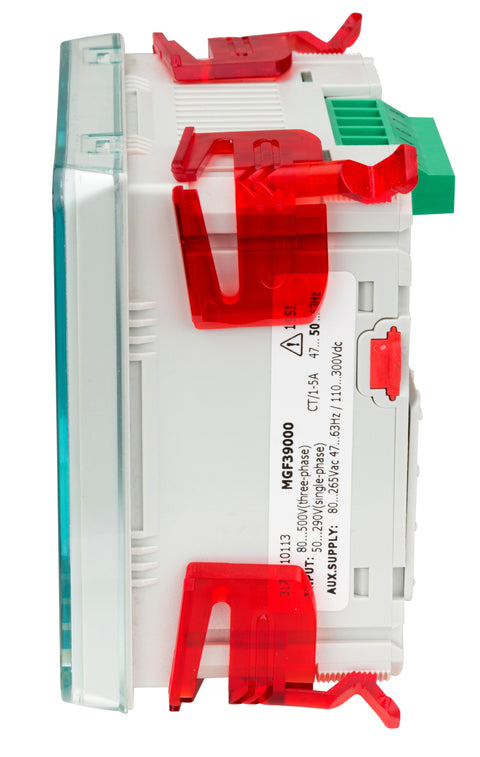

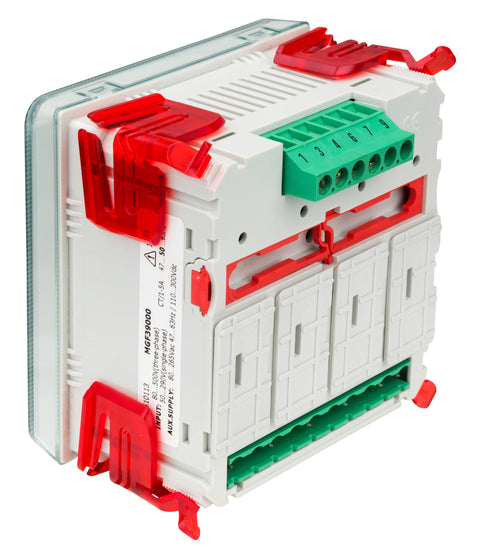

Analizor de reţea NA96, 96x96mm, aparat de bază
Unitate de ambalare: 1 buc.
Cantitate minima pentru comanda: 1 buc.
Ai vazut mai ieftin?
Spune-ne unde ai vazut mai ieftin acest produs
Analizor de reţea NA96, 96x96mm, aparat de bază
1.707,96 lei
| Caracteristică | Valoare |
|---|---|
| Număr articol Hlief | MGF39000-- |
| Frequency (tolerance) | ± 0.15 Hz |
| COD COMANDĂ | MGF39000 |
| Emission test | according to EN 62052-11 |
| Real energy (tolerance) | Class 1 (62053-21) |
| Consum de putere | < 3,5 W / ≤4VA (without additional modules) |
| Connection (current) | max. 6mm² |
| disipare | 6,00 W |
| Programming | ## |
| Data storage | storage of data in non-volatile memory |
| Operating frequency (auxiliary voltage) | 47 ... 63 Hz |
| Current (tolerance) | ± 0.5% (10...120% In) |
| Harmonic content | up to the 16th harmonic |
| Relay | Assignment of measured variable, switching threshold, min or max, NO or NC, hysteresis, response delay, dropout delay |
| Connection (voltage) | max. 4mm² |
| Accuracy | ## |
| Electromagnetic compatibility | ## |
| Terminale externe CAD | 1 |
| Insulation voltage | 300V (phase - neutral) |
| Unitate de ambalare | 1 m. |
| Voltage (tolerance) | ± 0.5% (80...500 V phase - phase) |
| Front frame | 96 x 96mm mm |
| Reactive Power (tolerance) | Class 2 (EN62053-23) |
| grad de protecţie | IP54 (front), IP20 (connections) |
| Masă netă | 0,29 kg/m |
| Average current | ## |
| Working frequency | 47…63 Hz |
| Carcasă | ## |
| Conexiune | Clema cu șurub |
| Funcţie | Network analyzer |
| PREG | 2330 |
| Immunity test | according to EN 62052-11 |

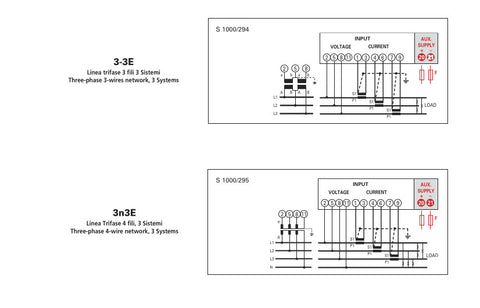

| Tip reţea | 1 - phase or 3 / 4 - phase connection |
| Temperature influence | ≤ 0,1% / °C °C |
| Voltage (three-phase network) | 80 ... 500 V (phase-phase) |
| Voltage (alternating current network) | 50 … 290 V |
| Working conditions | ## |
| Simbol CAD | P |
| Nominal current (input) | 5A - 1A - nur Stromwandleranschlus |
| Display indication | 4 lines / 4 digits |
| Primary voltage (V) | 1 ... 10 (max. primary voltage 1200V) |
| Housing material | Polycarbonate, self-extinguishing |
| Reference temperature | 23 ± 2 °C |
| Buton | 4 front keys, access protected by password |
| Temperatura maximă a mediului ambiant | 70 °C |
| Integration time | adjustable 5/8/10/15/20/30/60 minutes |
| Mărime | 96x96mm |
| Primary currents (A) | 1 ... 9999 (max. primary current 50kA / 5A - 10kA / 1A) |
| Adâncime | 62 mm |
| Fabricant | Schrack |
| Auxiliary voltage Uaux | 80 ... 265VAC / 110 ... 300VDC |
| metodă de măsurare | conversie valoarea efectivă adevărată |
| Test circuit | all circuits and ground |
| Self-consumption (voltage path) | ≤ 0.5VA (per phase) |
| Rated frequency | 50 Hz |
| Self-consumption (current path) | ≤ 0.5VA (per phase) |
| Accesorii opționale | MGF3900A--;MGF3900B--;MGF3900B--;MGF3900E--;MGF3900I--;MGF3900L--;MGF3900M--;MGF3900P--;MGF3900R--;MGF3900S--;MG900222--;MG900225--;MG952006-A;MG952010-A;MG952025-A;MG954060-A;MG955080-A;MG957200-A;MG959300-A;MG959400-A |
| Auxiliary voltage | ## |
| Housing type | for panel mounting (panel cut-out 92 x 92 mm) |
| PROMO CODE GER INDUSTRY | 0993-00166-89 |
| Power (tolerance) | ± 1% (10...120% Pn, Qn,Sn) |
| Isolation test voltage | 4 kV R.M.S. 50 Hz/1min |
| DESCRIERE2 | Analizor de reţea NA96, aparat de bază |
| COD PROMO | 0993-0178-71 |
| Rated frequency (auxiliary voltage) | 50 Hz |
| Current average | Integration time |
| Input | ## |
| Installation category | III |
| Grad de poluare | 2 |
| Tipul comunicării | RS 232, address, baud rate, parity bit |
| LxBxH mm | 76x92x92 |
| Gama de temperatură - Transport/Depozitare | -25 to +70 °C |
| Temperatura minimă a mediului ambiant | -25 °C |
| Depth (incl. Modules) | 81 mm |
| Descriere electrică CAD | NA96 |
| Measuring cycle time | 1,10 s |
| Overload (short-time) | 20 In / 0.5 seconds |
| Tip | panou frontal |
| Afişaj | LCD with backlight |
| PROMO CODE CH | 0993-0274-76 |
| Temperatură de funcţionare | -5°C to +55°C |
| Pulse value | Active or reactive energy, valence, pulse duration |
| Backlight dimmable | 0 - 30 - 70 - 100% |
| Overload (continuous) | 1.2 In |
| Backlight | switches off automatically after 20 seconds without operation |
| Afişaj | ## |
| Mains type | 1 - phase or 3 / 4 - phase connection |
| Programmable parameters | ## |
