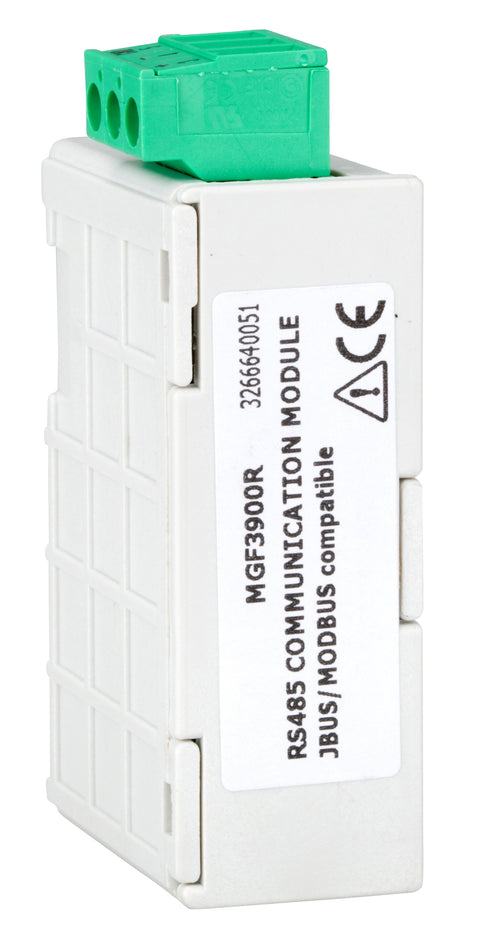

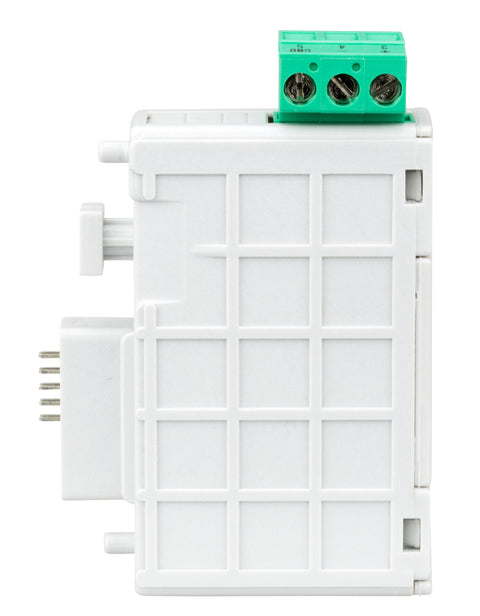

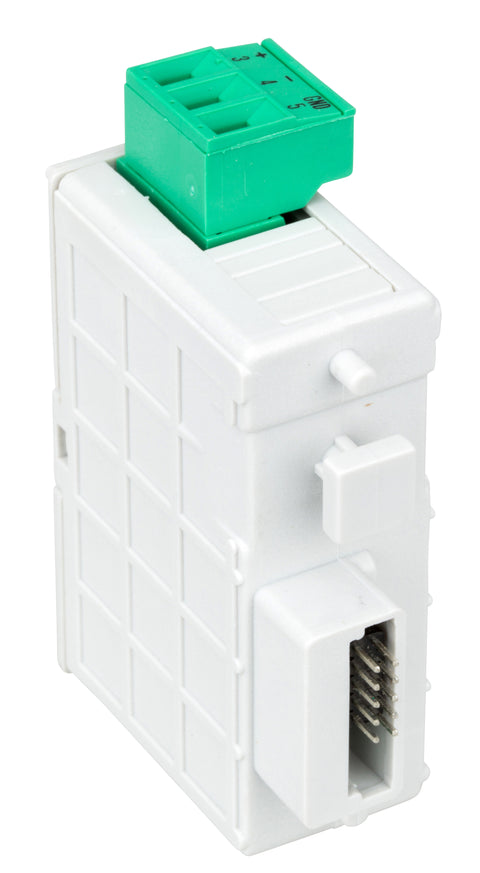

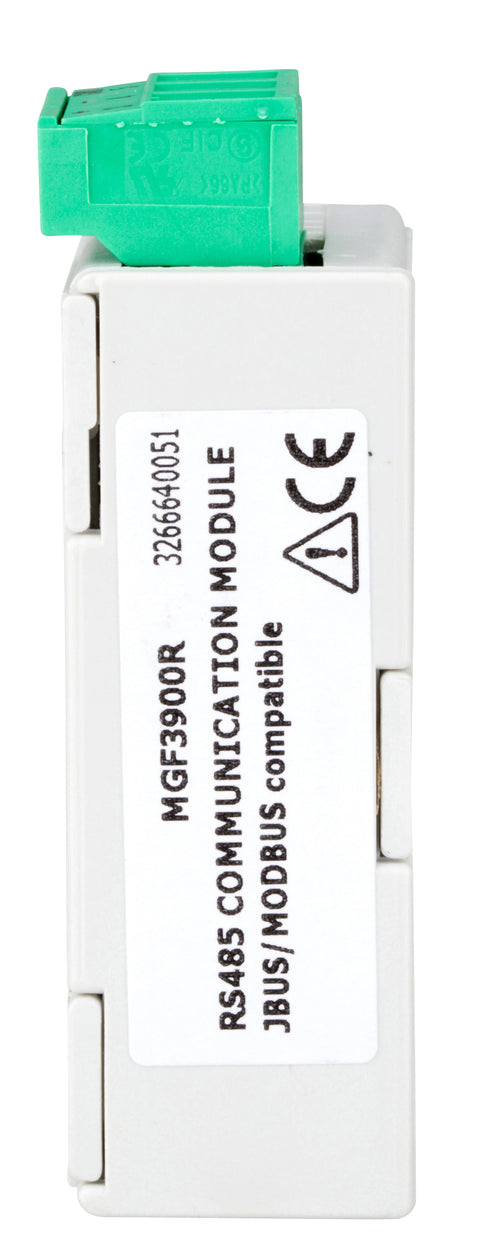

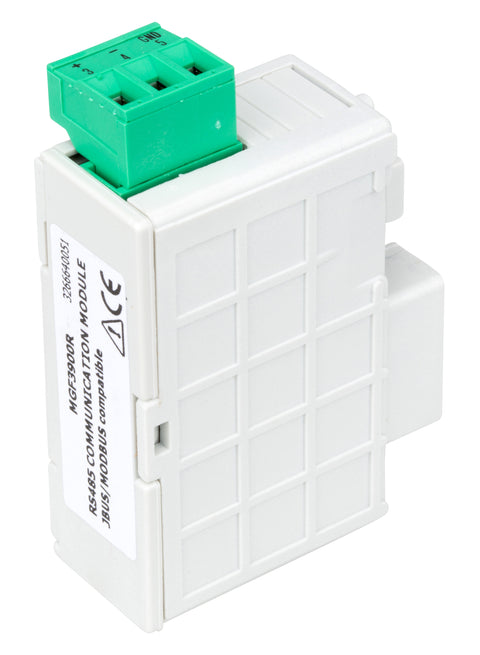

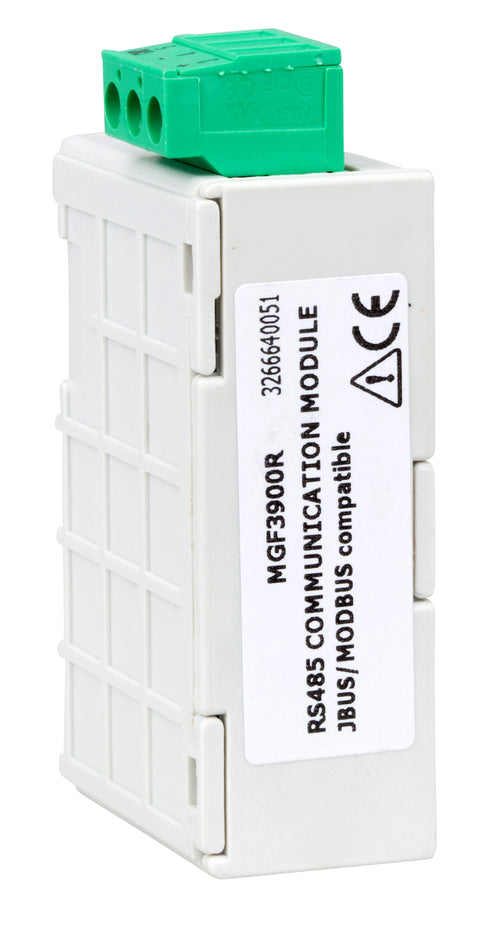

Modul comunicatie serial RS485
Unitate de ambalare: 1 buc.
Cantitate minima pentru comanda: 1 buc.
Ai vazut mai ieftin?
Spune-ne unde ai vazut mai ieftin acest produs
Modul comunicatie serial RS485
465,26 lei
| Caracteristică | Valoare |
|---|---|
| Data readout time | 200 ms |
| Test circuit | Measuring input, auxiliary voltage, output 1 - output 2 |
| COD COMANDĂ | MGF3900R |
| Masă netă | 0,03 kg/m |
| Tip | accesorii |
| PROMO CODE GER INDUSTRY | 1037-00045-03 |
| Housing type | Plug-in housing with connection for NA96 |
| Terminale externe CAD | 1 |
| Unitate de ambalare | 1 m. |
| Carcasă | ## |
| Isolation test voltage | 2 kV R.M.S 50 Hz/1min (combination of NA96 + MGF3900R module) |
| disipare | 1,00 W |
| Address | 1 … 255 |
| PREG | 2330 |
| Conexiune | Screw connection wire (fixed) max. 4,5mm²;Screw connection wire (flexible) max. 2,5mm² |
| Număr articol Hlief | MGF3900R-- |
| Simbol CAD | P |
| Housing material | Polycarbonate, self-extinguishing |
| Bit rate | 4.800 - 9.600 - 19.200 - 38.400 bit/s |
| Standard | RS485 - 3 Draht |
| COD PROMO | 1037-0048-13 |
| Fabricant | Schrack |
| Greatest distance of devices | 1200m |
| Accesorii necesare | MGF39000--;MGF39001-- |
| Number of bits / stop bit | 8 / 1 |
| Parity bit | none - even - odd |
| Transmission | asynchronous serial |
| Auxiliary voltage | ## |
| Funcţie | Plug-in module |
| Temperatura minimă a mediului ambiant | -25 °C |
| Standard | RS485 - 3 wire |
| Depth (incl. Modules) | 81 mm |
| (Inputs and supply galvanically isolated) | ## |
| Number of devices to be connected | 32 (up to 255 with RS485 repeater) |
| Consum de putere | ≤ 5VA (combination of NA96 + module MGF3900R) |
| Masă g | 30 |
| Temperatura maximă a mediului ambiant | 55 °C |
| Descriere electrică CAD | RS485 /JBUS/MODBUS |
| PROMO CODE CH | 1037-0074-12 |
| Protocol | compatible JBUS / MODBUS |
| RS485 Interface | ## |
| LxBxH mm | 47x21x58 |
| Programmable parameters | ## |
