Transformator calibrat de curent 400/5A pt.bara 40x10mm
Unitate de ambalare: 1 buc.
Cantitate minima pentru comanda: 1 buc.
Ai vazut mai ieftin?
Spune-ne unde ai vazut mai ieftin acest produs
Transformator calibrat de curent 400/5A pt.bara 40x10mm
281,39 lei
| Caracteristică | Valoare |
|---|---|
| COD COMANDĂ | MG960040 |
| Masă netă | 0,42 kg/m |
| DIN rail | TH35-15 (EN60715) |
| COD PROMO | 8099-0020-61 |
| Conexiune | ## |
| Accesorii opționale | MGX20006--;MGX20306--;MGX20406-- |
| Rated dynamic current Idyn | 2.5Ith |
| Categorie produs | Normal installation (EN60044-1) |
| Gama de temperatură - Funcţionare | -25 la +50 °C |
| HxBxT mm | 95x70x45 |
| Intended use | for copper bars up to 40 x 10mm;for cables up to diameter 35mm |
| Rated current primary side Ipr | 400 A |
| Max. Operating voltage Um | 0.72kV r.m.s. |
| Domeniul de frecvenţă | 47 - 63Hz |
| Short-time current Ith | < 60Ipr |
| Reference temperature | 23°C ±1°C °C |
| Terminale externe CAD | 1 |
| Unitate de ambalare | 1 m. |
| Carcasă | ## |
| PREG | 2330 |
| Thermal rated continuous current according to EN60044-1 | ## |
| Temperatura maximă a mediului ambiant | 85 °C |
| Metodă de montaj | snap-on DIN rail 35 mm;screwable for wall mounting |
| Working conditions | ## |
| Gama de temperatură - Transport/Depozitare | -40 to +85 °C |
| Notă | Calibrated and listed by the Austrian Federal Office of Metrology and Verification (BEV) as a billing current transformer and can therefore be calibrated.;The transformers are not included in the MID directive, which means that the national BEV standard applies here.;If current transformers are used with energy meters for official billing purposes, only devices approved and calibrated in accordance with the calibration law should be used. |
| Simbol CAD | P |
| Daily average temperature | ≤ 30°C |
| Rated current secondary side Isr | 5A |
| Rated frequency | 51 Hz |
| Fabricant | Schrack |
| disipare | 11,50 W |
| Safety factor | ≤ 5 |
| Descriere electrică CAD | 400/5A |
| Bare colectoare maxim | 40x10 |
| Clasă | 0,5 |
| grad de protecţie | IP20 |
| Insulation requirements | ## |
| Housing material | Polycarbonate, self-extinguishing;Class V0 according to UL-94 |
| LxÎxA mm | 70x95x45 |
| Specifications | calibratable |
| Număr articol Hlief | MG960040-- |
| Temperatura minimă a mediului ambiant | -25 °C |
| Tip | calibratable transformers |

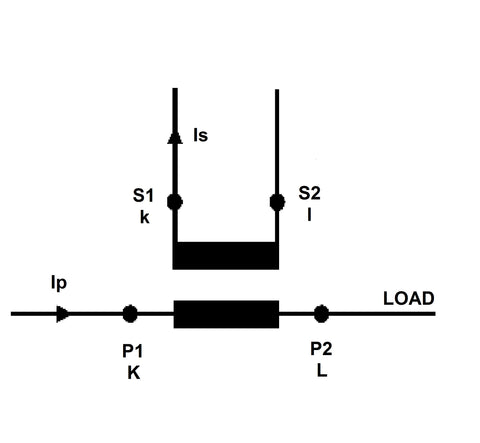

| Terminal labeling | Winding primary side P1(K) - P2(L);Winding secondary side s1(k) - s2(l) |
| Isolation | Class B (EN60044-1) |
| Curent primar | 400 A |
| Isolation test voltage | 3 kV R.M.S. 50 Hz/1min |
| PROMO CODE CH | 8099-0034-10 |
| Versiune | Dry type transformer, air insulation |
