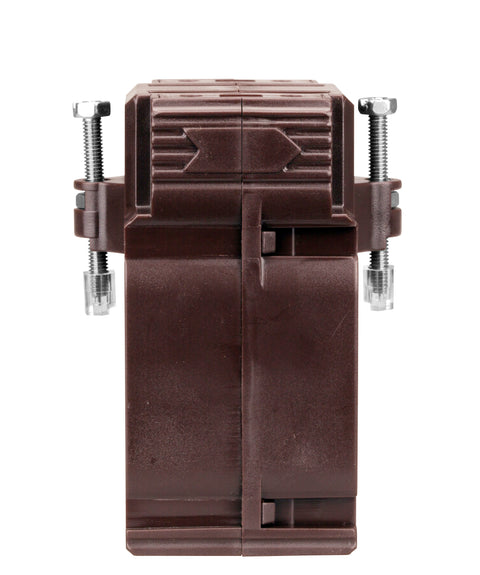

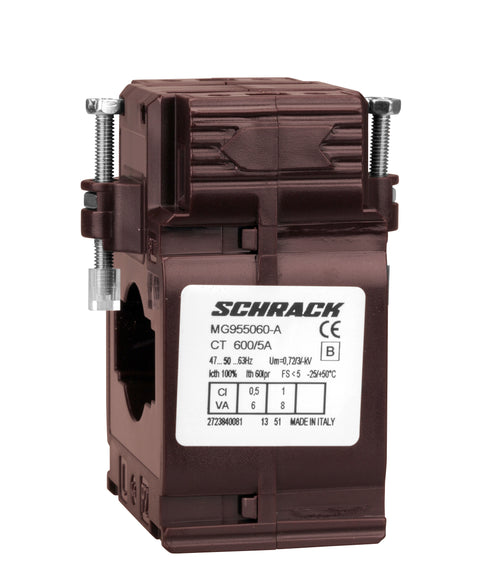

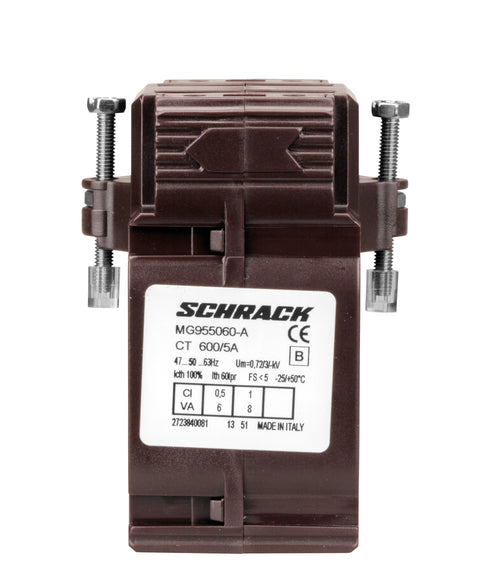

Transformator de curent 600/5A, 40x10, clasă 0,5
Unitate de ambalare: 1 buc.
Cantitate minima pentru comanda: 1 buc.
Ai vazut mai ieftin?
Spune-ne unde ai vazut mai ieftin acest produs
Transformator de curent 600/5A, 40x10, clasă 0,5
125,82 lei
| Caracteristică | Valoare |
|---|---|
| Tip | Push-through current transformers |
| DIN rail | TH35-15 (EN60715) |
| Conexiune | ## |
| Accesorii opționale | MGX20006--;MGX20306--;MGX20406-- |
| PROMO CODE CH | 7082-0023-05 |
| Rated dynamic current Idyn | 2.5Ith |
| Accuracy classes | ## |
| Gama de temperatură - Funcţionare | -25 la +50 °C |
| Load current error | For class 0.5 and 5% In: ±1.5%;For class 0.5 and 20% In: ±0.75%;For class 0.5 and 100% In: ±0.5%;For class 0.5 and 120% In: ±0.5%;For class 1 and 5% In: ±3%.;For class 1 and 20% In: ±1.5%;For class 1 and 100% In: ±1%.;For class 1 and 120% In: ±1% |
| COD COMANDĂ | MG955060-A |
| Max. Operating voltage Um | 0.72kV r.m.s. |
| Decupaj mm | 40x10;30x15 mm |
| Domeniul de frecvenţă | 47 - 63Hz |
| Short-time current Ith | < 60Ipr |
| Reference temperature | 23°C ±1°C °C |
| Burden | Class 0.5 (6VA);Class 1 (8VA) |
| Terminale externe CAD | 1 |
| Unitate de ambalare | 1 m. |
| Condiţii climatice | Suitable for tropical climate |
| Descriere electrică CAD | 600/5A, 40x10mm |
| Carcasă | ## |

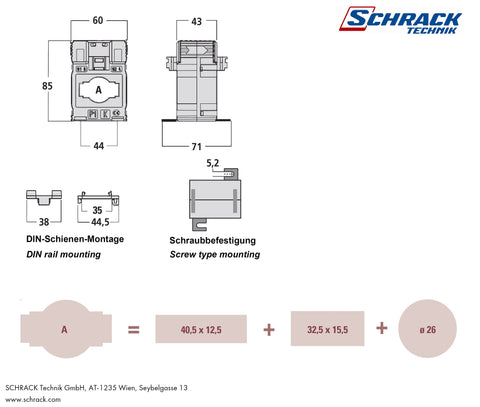

| LxÎxA mm | 60x61x85 |
| Umiditate relativă | ≤ 85 % |
| PREG | 2330 |
| DECUPAJ mm | 40x10 |
| Thermal rated continuous current according to EN60044-1 | ## |
| Temperatura maximă a mediului ambiant | 85 °C |
| Rated current primary side Ipr | 600 A |
| Notă | The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side. |
| Torque | busbar fixing: 0,2Nm |
| Metodă de montaj | snap-on DIN rail 35 mm;screwable for wall mounting |
| Working conditions | ## |
| Gama de temperatură - Transport/Depozitare | -40 to +85 °C |
| Simbol CAD | P |
| PROMO CODE GER INDUSTRY | 7082-00011-99 |
| Daily average temperature | ≤ 30°C |
| COD PROMO | 7082-0013-87 |
| Specifications | ## |
| Masă g | 300 |
| Rated current secondary side Isr | 5A |
| Housing material | Polycarbonate, self-extinguishing |
| Winding primary side | Cable and busbar feedthrough |
| Fabricant | Schrack |
| disipare | 11,50 W |
| Safety factor | ≤ 5 |
| Curent primar | 600 A |
| Rated frequency | 50 Hz |
| Thermal power loss | ≤ 11.5W at Icth;125°C Maximum temperature cable/busbar. |
| Bare colectoare maxim | 40x10 |
| Clasă | 0,5 |
| grad de protecţie | IP20 |
| Insulation requirements | ## |
| HxBxT mm | 61x60x85 |
| Masă netă | 0,30 kg/m |
| Temperatura minimă a mediului ambiant | -25 °C |
| Categorie produs | Normal installation (DIN EN 61869-2) |
| Standard produs | EN 61869-2 |

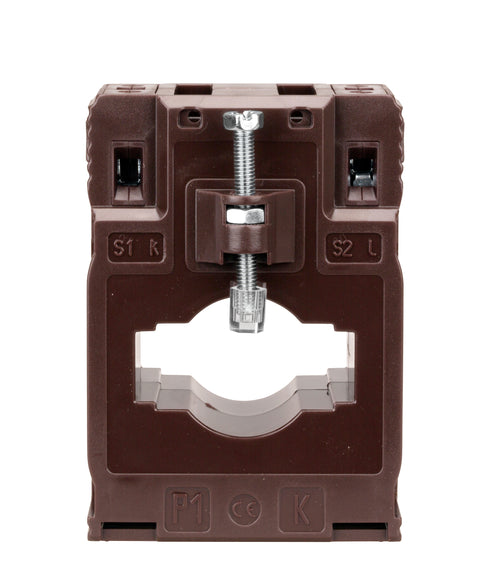

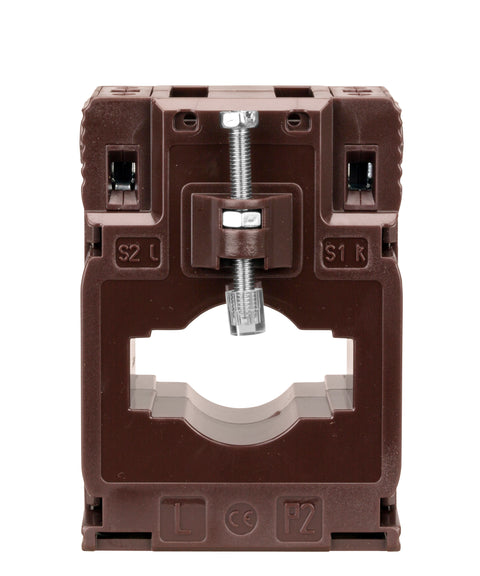

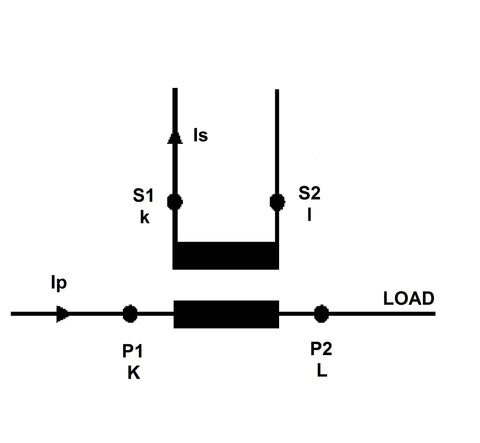

| Terminal labeling | Winding primary side P1(K) - P2(L);Winding secondary side s1(k) - s2(l) |
| Isolation | Class B (EN60044-1) |
| Winding secondary side | screw terminals 6mm²;Faston 4,8x0,8mm |
| Intended use | for copper bars up to 40 x 10mm;for copper bars up to 30 x 15mm;for cables up to diameter 26mm |
| Isolation test voltage | 3 kV R.M.S. 50 Hz/1min |
| Versiune | Dry type transformer, air insulation |
