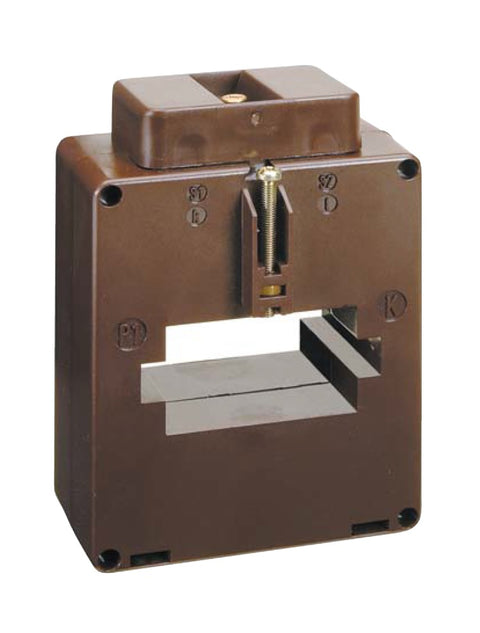

Transformator de curent 1200/5A 50*30/60*10mm, clasa 0,5
Curent primar 1200A, grad de protecţie IP00 terminals,IP20 with terminal cover, Clasă 0,5
Unitate de ambalare: 1 buc.
Cantitate minima pentru comanda: 1 buc.
Ai vazut mai ieftin?
Spune-ne unde ai vazut mai ieftin acest produs
Transformator de curent 1200/5A 50*30/60*10mm, clasa 0,5
290,16 lei
| Caracteristică | Valoare |
|---|---|
| COD PROMO | 2818-0027-76 |
| Tip | Push-through current transformers |
| disipare | 16,00 W |
| Conexiune | ## |
| COD COMANDĂ | MG956120-A |
| Bare colectoare maxim | 60x10 |
| PROMO CODE GER INDUSTRY | 2818-00024-15 |

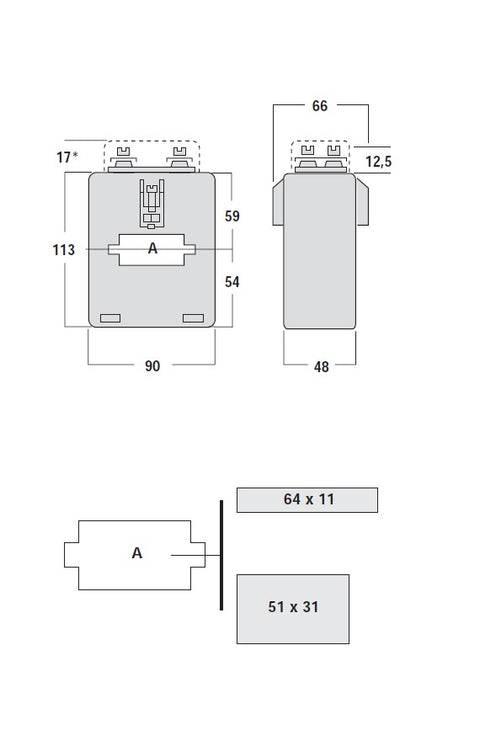

| HxBxT mm | 130x90x48 |
| Accuracy classes | ## |
| DECUPAJ mm | 50x30 |
| Unitate de ambalare | 1 m. |
| DESCRIERE2 | Transformator de curent 1200/5A |
| Carcasă | ## |
| PREG | 2330 |
| PROMO CODE CH | 2818-0046-12 |
| Decupaj mm | 50x30;60x10 mm |
| Curent primar | 1200 A |
| Notă | The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side. |
| Temperatura maximă a mediului ambiant | 60 °C |
| Rated current secondary side Isr | 5A |
| Housing material | Polycarbonate, self-extinguishing |
| Burden | Class 0.5 (10VA);Class 1 (12VA);Class 3 (15VA) |
| Fabricant | Schrack |
| Montaj | by fixing screws on the busbar |
| Rated current primary side Ipr | 1200 A |
| Rated frequency | 50 Hz |
| Clasă | 0,5 |
| LxÎxA mm | 90x130x48 |
| Masă g | 500 |
| Masă netă | 0,47 kg/m |
| Temperatura minimă a mediului ambiant | -25 °C |
| Standard produs | EN 61869-2 |
| Winding secondary side | Screw terminals M4;Faston 4,8x0,8mm |
| Intended use | for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm |
| grad de protecţie | IP00 terminals;IP20 with terminal cover |
