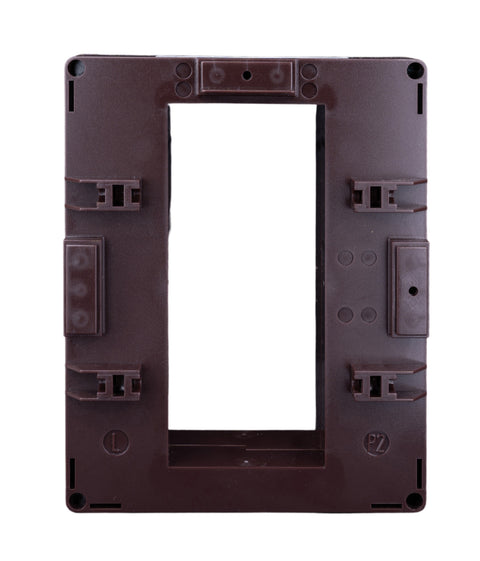

Transformator de curent 4000/5A, 125x50, clasa 0,5
Unitate de ambalare: 1 buc.
Cantitate minima pentru comanda: 1 buc.
Ai vazut mai ieftin?
Spune-ne unde ai vazut mai ieftin acest produs
Transformator de curent 4000/5A, 125x50, clasa 0,5
544,98 lei
| Caracteristică | Valoare |
|---|---|
| Masă g | 1300 |
| Tip | Push-through current transformers |
| PROMO CODE GER INDUSTRY | 6948-00070-26 |
| Conexiune | ## |
| Accesorii opționale | MGX20006--;MGX20306--;MGX20406-- |
| Accuracy classes | ## |
| Terminale externe CAD | 1 |
| Unitate de ambalare | 1 m. |
| Descriere electrică CAD | 4000/5A, 125x50mm |
| PROMO CODE CH | 6948-0098-88 |
| Carcasă | ## |
| Curent primar | 4000 A |
| Winding secondary side | Screw terminals M4 |
| PREG | 2330 |

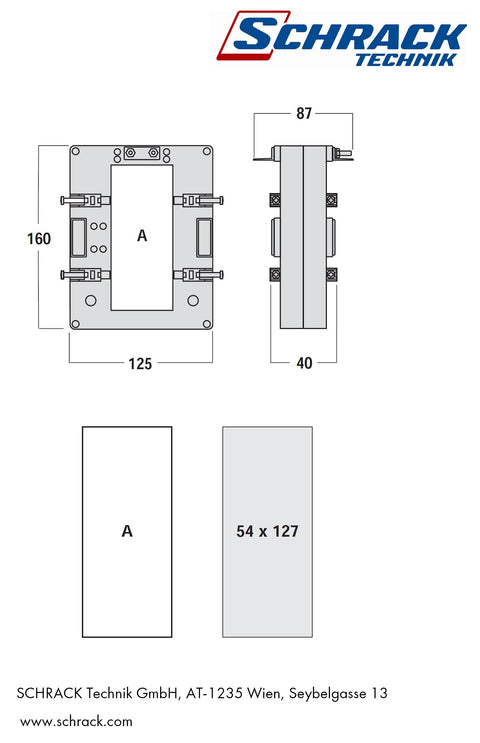

| HxBxT mm | 87x125x160 |
| Notă | The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side. |
| Intended use | for copper bars up to 125 x 50mm |
| DECUPAJ mm | 125x50 |
| disipare | 23,00 W |
| Simbol CAD | P |
| Specifications | ## |
| Rated current secondary side Isr | 5A |
| Burden | Class 0.5 (30VA);Class 1 (50VA);Class 3 (60VA) |
| Decupaj mm | 125x50 mm |
| Rated current primary side Ipr | 4000 A |
| Fabricant | Schrack |
| PU | 3 |
| COD COMANDĂ | MG959400-A |
| Montaj | by fixing screws on the busbar |
| Bare colectoare maxim | 125x50 |
| Rated frequency | 50 Hz |
| Clasă | 0,5 |
| Housing material | Polycarbonate, self-extinguishing;Class V0 according to UL-94 |
| LxÎxA mm | 125x87x160 |
| Temperatura minimă a mediului ambiant | -25 °C |
| Temperatura maximă a mediului ambiant | 55 °C |
| Standard produs | EN 61869-2;BS3938;BS7626 |
| COD PROMO | 6948-0059-51 |
| grad de protecţie | IP00 terminals;IP20 with terminal cover |
| Masă netă | 1,30 kg/m |
