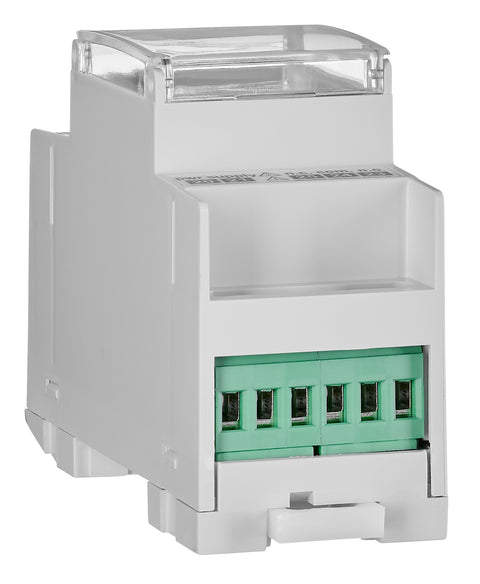

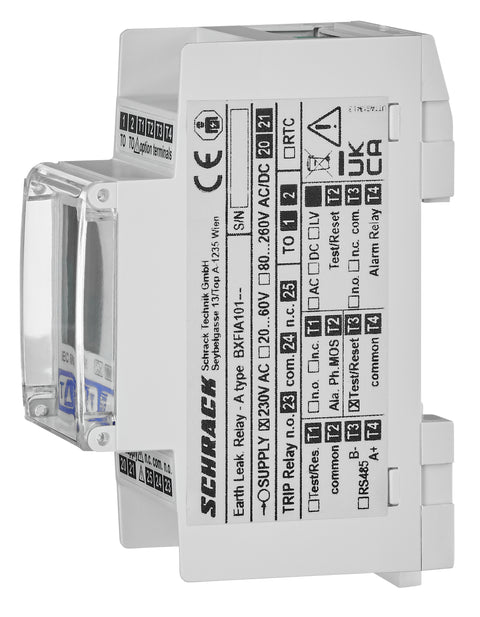

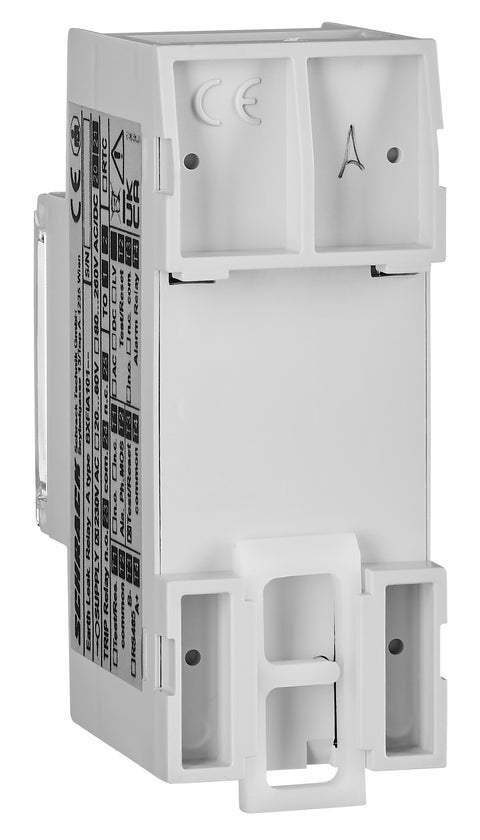

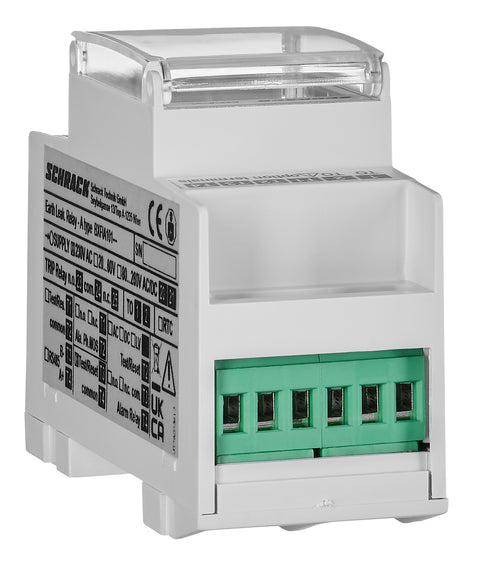

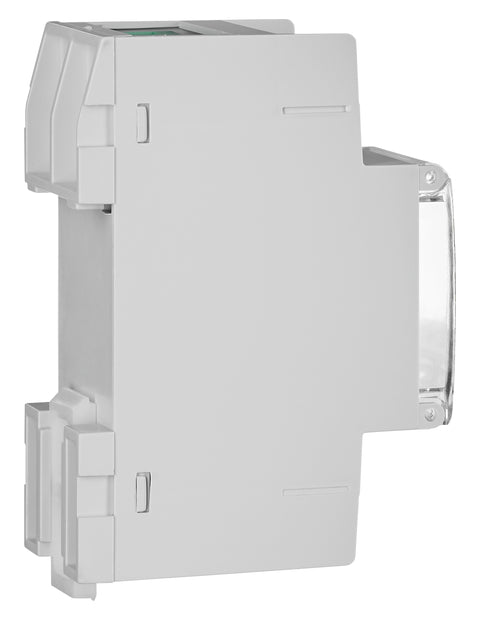

Releu deferențial tip A, cu display LCD, de la 30mA la 3A
Se vor utiliza numai în combinație cu transformatoare BXFIA! metodă de măsurare tip AC, A, F - TRMS, alimentare 230V c.a., grad de protecţie IP20 (housing), IP20 (connections)
Unitate de ambalare: 1 buc.
Cantitate minima pentru comanda: 1 buc.
Ai vazut mai ieftin?
Spune-ne unde ai vazut mai ieftin acest produs
Releu deferențial tip A, cu display LCD, de la 30mA la 3A
1.401,80 lei
| Caracteristică | Valoare |
|---|---|
| Accesorii opționale | BXFIA110--;BXFIA111--;BXFIA112--;BXFIA113--;BXFIA114--;BXFIA115--;BXFIA116--;BXFIA117--;BXFIA118--;BXFIA130--;BXFIA131--;BXFIA132-- |
| Decimal point Position | Automatic;10 Steps |
| Standard | EN 60947-2;EN 62423 |
| Technical data | Harmonic filter at 3rd harmonic - 80% attenuation @ 150Hz;Harmonic filter according to IEC 62423, VDE 0664-T-100;Rated residual current I∆n: 30mA-30A;Non-tripping fault current I∆no: ≤80-98%;Inverted time-current characteristic: instantaneous: I∆n = 30mA (IEC60947-2 Tab.B.1);Inverted time-current characteristic: Selective 60ms: I∆n < 30mA (IEC60947-2 Tab.B.2);Inverted time-current characteristic: Delayed 20ms - 30s: I∆n < 30mA;Constant time-current characteristic: instantaneous 20ms: I∆n = 30mA ;Constant time-current characteristic: delayed 20ms-30s: I∆n > 30mA ;Automatic trip retry: 0-10x;Trip contact: Trip contact SPDT, 5A 250Vac;Rated load at 250VAC, AC1: 6A;Rated load at 250VAC, AC15: 3A;Rated load at 24VDC, DC1: 6A;Rated load at 24VDC, DC13: 2A |
| Unitate de ambalare | 1 m. |
| disipare | 1,00 W |
| metodă de măsurare | tip AC, A, F - TRMS |
| Accuracy | Basic accuracy +/-0.5% |
| COD COMANDĂ | BXFIA101 |
| Terminal type | Screw terminal max 2.5mm² |
| grad de protecţie | IP20 (housing), IP20 (connections) |
| Bargraph | 0-100% IΔn |
| Gama de temperatură - Funcţionare | 0 bis +50 °C |
| Temperatura minimă a mediului ambiant | -10 °C |
| Gama de temperatură - Transport/Depozitare | -30 la +70 °C |

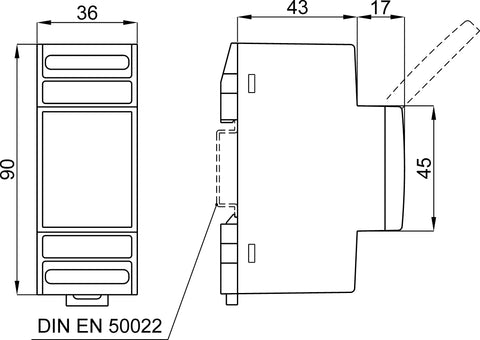

| LxBxH mm | 66x36x90 |
| PREG | 2500 |
| Masă netă | 0,20 kg/m |
| Măsurători | Bandwidth 2.5Hz - 10kHz |
| alimentare | 230V c.a. |
| Indication in display | 3 Digits |
| Safety | Insulation and safety according to ICE 61010-1, IEC60947-1;Standard (ND) or positive (NE) |
| Metodă de montaj | snap-on DIN rail 35 mm |
| Temperatura maximă a mediului ambiant | 50 °C |
| Material | Self-extinguishing thermoplastic (UL 94-V0) |

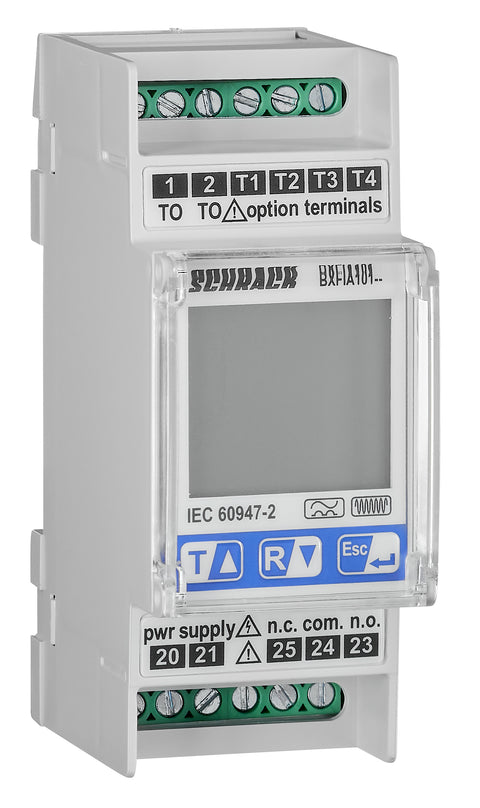

| Afişaj | LCD with colored backlight;500ms refresh rate |
